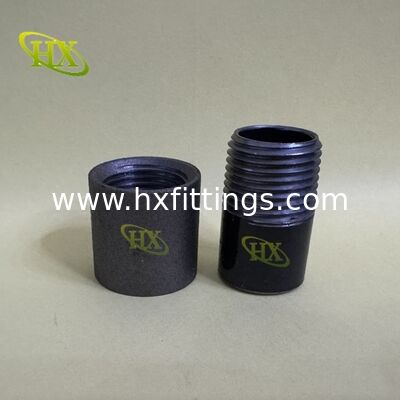

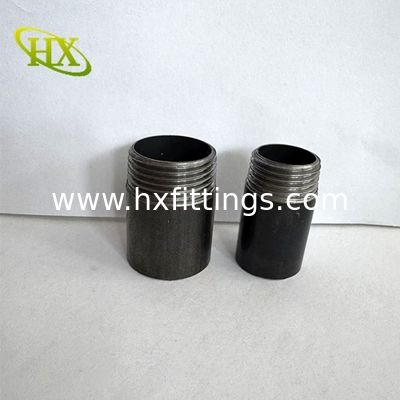

Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin

  • Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin
  • Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin
  • Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin
  • Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin
Place of Origin CHINA
Brand Name HX
Model Number 1/8-2
Minimum Order Quantity 2 Tons
Price 0.25 RMB
Packaging Details carton and pallet
Delivery Time 15 days
Payment Terms L/C,,T/T,D/P,D/A,Western Union,
Supply Ability 10000000 PCS per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Raw Material Carbon Steel Port Tianjin
Payment L/C, T/T Supply Ability 700000 Tons
Leave a Message
Product Description

Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin 0


Size: 1/8-8"
Material: Carbon steel
Connection:  Thread
Technics: Forge
Application: Pipe Connections for matural gas , oil , water, fire fighting, landmines,etc.
Origin: China
Package: Cartons& pallet / Cartons& Plywood cases
Brand:  Hongxin
Free Sample: Yes
specification: ANSI B1 20.1 , SCH80 ,Welded or seamless, ASTM A733 / DIN2982 / BS EN10241


Product Overview

Cangzhou Hongxin is a professional Chinese manufacturer specializing in high-performance welding steel pipe nipples and pipe sockets with BSP (British Standard Pipe) thread. These precision-engineered fittings are designed for robust, leak-proof connections in industrial piping systems, particularly where welding is required for permanent, high-strength joints. Compliant with international standards, our products ensure reliability in demanding applications.

Key Features & Benefits

  • BSP Thread Compatibility: Available in BSPT (tapered) and BSPP (parallel) threads to meet global specifications, ensuring perfect sealing and connection integrity.

  • Welding-Ready Design: One end features a standard BSP thread for connection; the other is prepared for a secure, strong weld to the pipe or fitting.

  • Material Versatility: Manufactured from carbon steel (ASTM A105, A350) and stainless steel (304/316) for corrosion resistance and durability.

  • High-Pressure & Temperature Resistance: Suitable for demanding industrial environments including steam, oil, and chemical systems.

  • Precision Machining: Accurate threads and beveled ends ensure easy welding and a perfect fit.

Technical Specifications



Parameter Specification
Product Types Welding Pipe Nipples, Welding Pipe Sockets (Couplings)
Thread Standard BSP (BSPT to BS 21 / ISO 7-1; BSPP to BS 2779)
Material Grades Carbon Steel: ASTM A105, A350 LF2
Stainless Steel: ASTM A182 F304/304L, F316/316L
Size Range 1/8" to 4" (DN6 to DN100)
Pressure Class Up to 3000 PSI (dependent on size and material)
Surface Finish Black, Galvanized, or Plain (as required)
Standards BS, ISO, ANSI/ASME B16.11, DIN

Applications

Our welding BSP fittings are essential in industries that require strong, permanent connections:

  • Oil & Gas Pipelines: For wellheads, manifolds, and process lines.

  • Power Generation: In boiler feed systems, steam lines, and cooling circuits.

  • Shipbuilding & Marine Engineering: For onboard piping systems.

  • Chemical & Petrochemical Plants: Handling corrosive and high-purity fluids.

  • Industrial Machinery: Integrating hydraulic and pneumatic systems.

Why Choose Cangzhou Hongxin?

  1. Expertise in BSP Fittings: Deep understanding and precise manufacturing of BSP thread profiles.

  2. Quality Assurance: Every fitting undergoes dimensional checks, thread gauging, and material verification.

  3. Full Customization: We produce non-standard lengths, special wall thicknesses (SCH40, SCH80, etc.), and specific material grades.

  4. Competitive Factory Pricing: Eliminate intermediaries and benefit from direct manufacturer costs.

  5. Global Export Experience: Reliable logistics and documentation for smooth international delivery.

Ordering & Customization

Contact us with your specific requirements:

  • Type: Nipple or Socket

  • Size & BSP Thread Type: (e.g., 1" BSPT)

  • Material & Grade:

  • Length & Wall Thickness:

  • Quantity & Destination:

We provide detailed quotes, samples for approval, and complete certification packages.

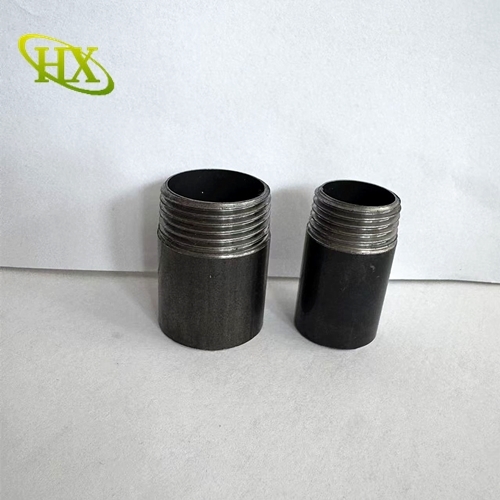

Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin 1

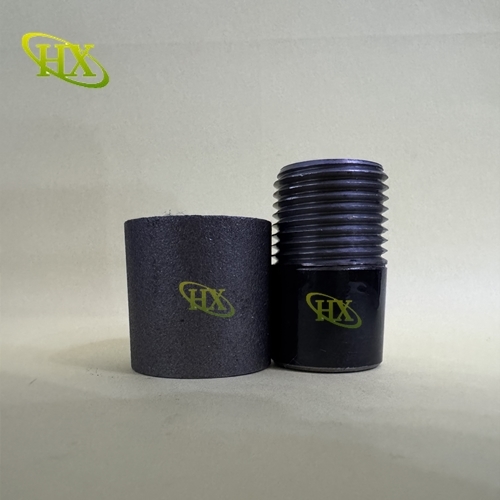

Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin 2

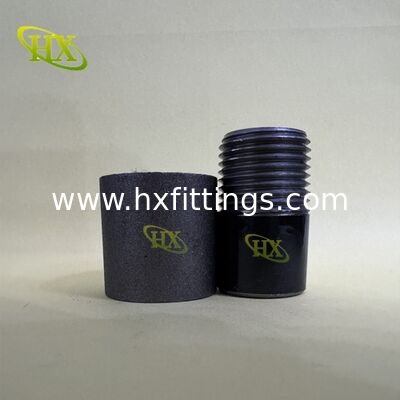

Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin 3

Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin 4

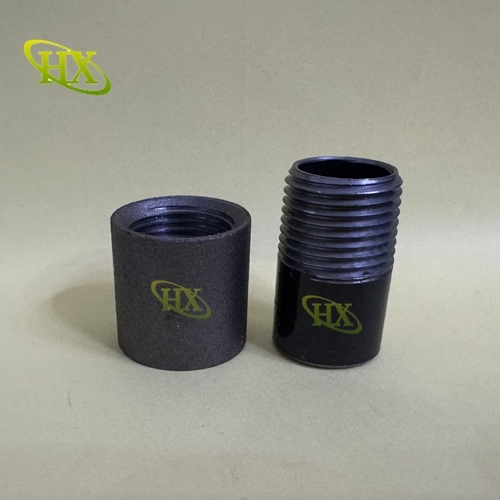

Welding steel pipe nipples and pipe sockets with BSP thread -Cangzhou Hongxin 5
