Product Details:
Payment & Shipping Terms:
|
| Parameter | Specification |
|---|---|
| Product Types | Galvanized Steel Pipe, Seamless Steel Tube |
| Standards | ASTM A53, ASTM A106, API 5L, DIN 2440, JIS G3444 |
| Material | Carbon Steel (Grades Q195, Q235, S235JR, S355JR) |
| Coating | Hot-Dip Galvanized (Zinc Coating) |
| Sizes | 1/8" to 24" (DN6 to DN600) |
| Wall Thickness | SCH10, SCH40, SCH80, and custom options |
| Length | Random (RAND) or cut-to-length (6-12m) |
| Pressure Rating | Up to 3000 PSI (dependent on size and schedule) |
Overview
Carbon steel pipes and stainless steel pipes are widely used across industries due to their versatility and durability. These tubular products are manufactured to meet various international standards and specifications. Pipes are categorized by "nominal pipe size," ranging from 1/8" to 72". The two primary types are seamless pipes and welded pipes (also known as ERW - Electric Resistance Welded pipes). Both are available in carbon steel and stainless steel. The most common standards for carbon steel pipes include ASTM A53 for welded pipes and ASTM A106 Grade B for seamless pipes. Stainless steel pipes, conforming to ASTM A312, are available in seamless and welded forms, with Grades 304 and 316 being the most widely used.
Carbon Steel Pipe
Carbon steel pipes are manufactured from steel ingots or solid tube billets through processes such as perforation, hot rolling, cold rolling, or cold drawing. These pipes play a critical role in various industrial applications.
General carbon steel pipes are made from high-quality carbon steels like Grades 10, 20, 30, 35, and 45, as well as low-alloy structural steels such as 16Mn and 5MnV, or alloy steels like 40Cr, 30CrMnSi, and 45Mn2. Seamless pipes made from low-carbon steels (e.g., Grades 10 and 20) are primarily used for fluid transportation, while those made from medium-carbon steels (e.g., Grades 45 and 40Cr) are ideal for manufacturing mechanical components, including automotive and tractor parts. Carbon steel pipes undergo rigorous strength and flattening tests to ensure quality. Hot-rolled pipes are delivered in a hot-rolled or heat-treated state, while cold-rolled pipes are delivered in a heat-treated state.

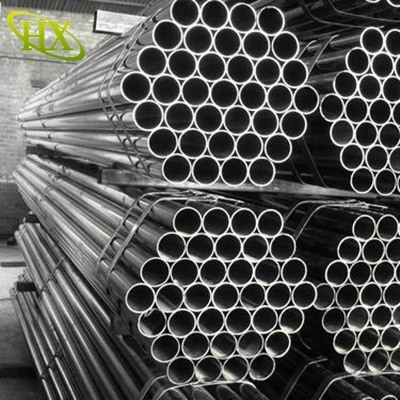

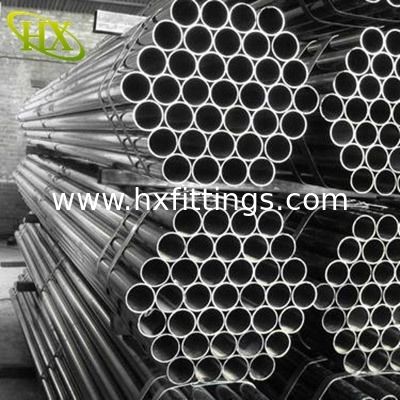

Seamless Pipe
Seamless steel pipes are manufactured from a solid round steel billet without any welding seams. Based on the production method, seamless pipes can be classified into hot-rolled, cold-rolled, cold-drawn, extruded, and top pipes. In terms of cross-sectional shape, they are available in round and specialized shapes, including square, elliptical, triangular, hexagonal, melon, star, and finned designs. Sizes range from 4mm to 900mm in diameter. Depending on the application, seamless pipes can be thick-walled or thin-walled. They are commonly used in petroleum drilling, petrochemical cracking, boiler systems, bearing manufacturing, and high-precision structural applications in automotive, tractor, and aerospace industries.
Galvanized steel pipes are categorized into cold-galvanized and hot-dip galvanized pipes. Cold-galvanized pipes are now prohibited in many applications due to environmental and health concerns, while hot-dip galvanized pipes are still widely used in specific industries. Since the 1960s and 1970s, developed countries have been phasing out galvanized pipes for water supply systems. In 2000, China’s Ministry of Construction also banned galvanized pipes for water supply applications. Today, galvanized pipes are rarely used for cold water systems in new buildings but are occasionally used for hot water systems. Hot-dip galvanized pipes remain popular in firefighting, power transmission, and highway infrastructure.

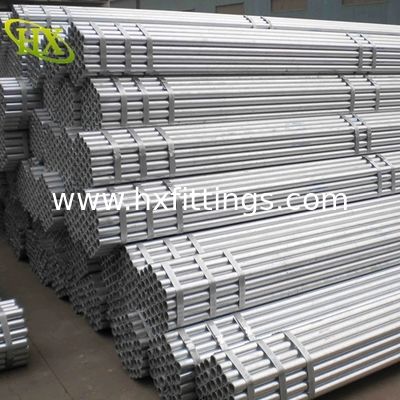

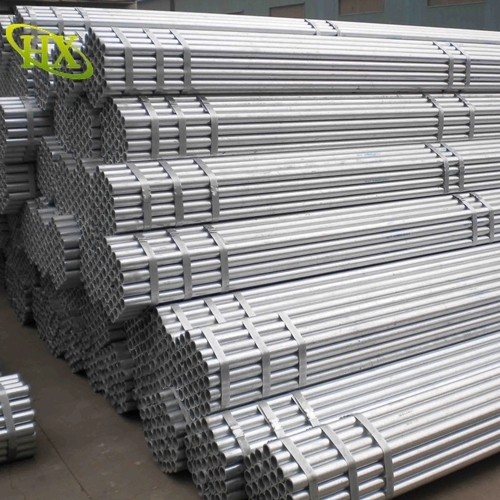

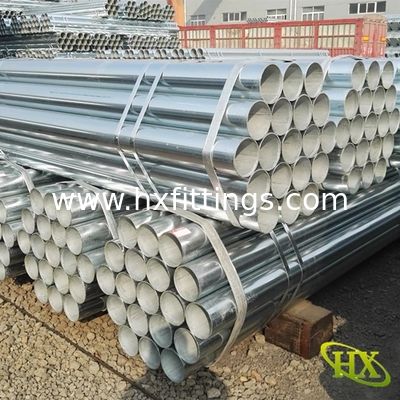

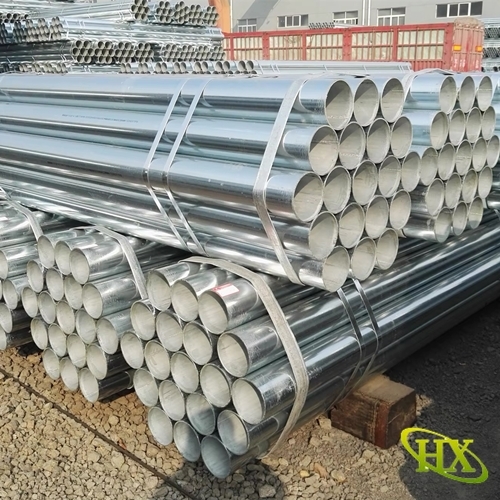

Hot-Dip Galvanized Pipe
Hot-dip galvanized pipes are standard steel pipes coated with a layer of zinc to enhance corrosion resistance. Compared to electro-galvanizing, hot-dip galvanizing offers a thicker coating, better durability, and a smoother surface. These pipes are extensively used in construction, machinery, mining, chemical processing, power generation, railway and automotive manufacturing, highway and bridge construction, container production, sports facilities, agricultural machinery, petroleum machinery, and geological exploration equipment.
Why Choose Cangzhou Hongxin?
Quality Assurance: All pipes undergo strict quality checks, including hydrostatic testing, dimensional verification, and coating adhesion tests.
Comprehensive Range: We offer seamless and welded pipes in various sizes, materials, and coatings to meet diverse industrial needs.
Competitive Pricing: As a direct manufacturer, we provide cost-effective solutions without compromising on quality.
Global Standards Compliance: Our products meet ASTM, API, DIN, and ISO standards.
Customization: We tailor products to specific requirements, including size, thickness, and coating.
